(CRS-LOEHEYS) Listen Only Y Splitter Earhook Earpiece w/ Cable

(CRS-LOEHEYS) Listen Only Y Splitter Earhook Earpiece w/ Cable

$75.00AUD
$75.00AUD
Sale Sold out

List Price EX. GST

CRS-LOEHEYSS-2.5

Connector Chart

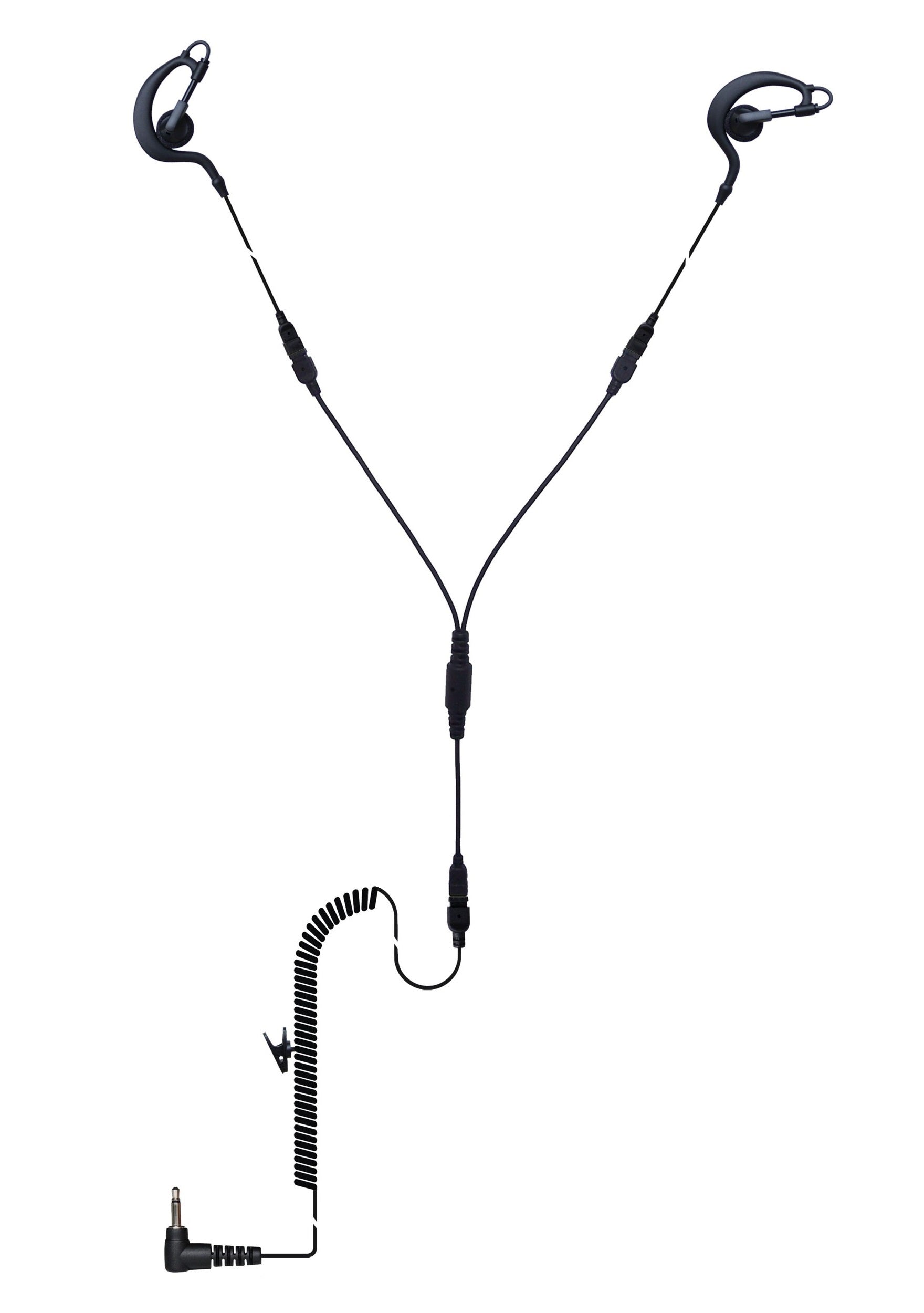

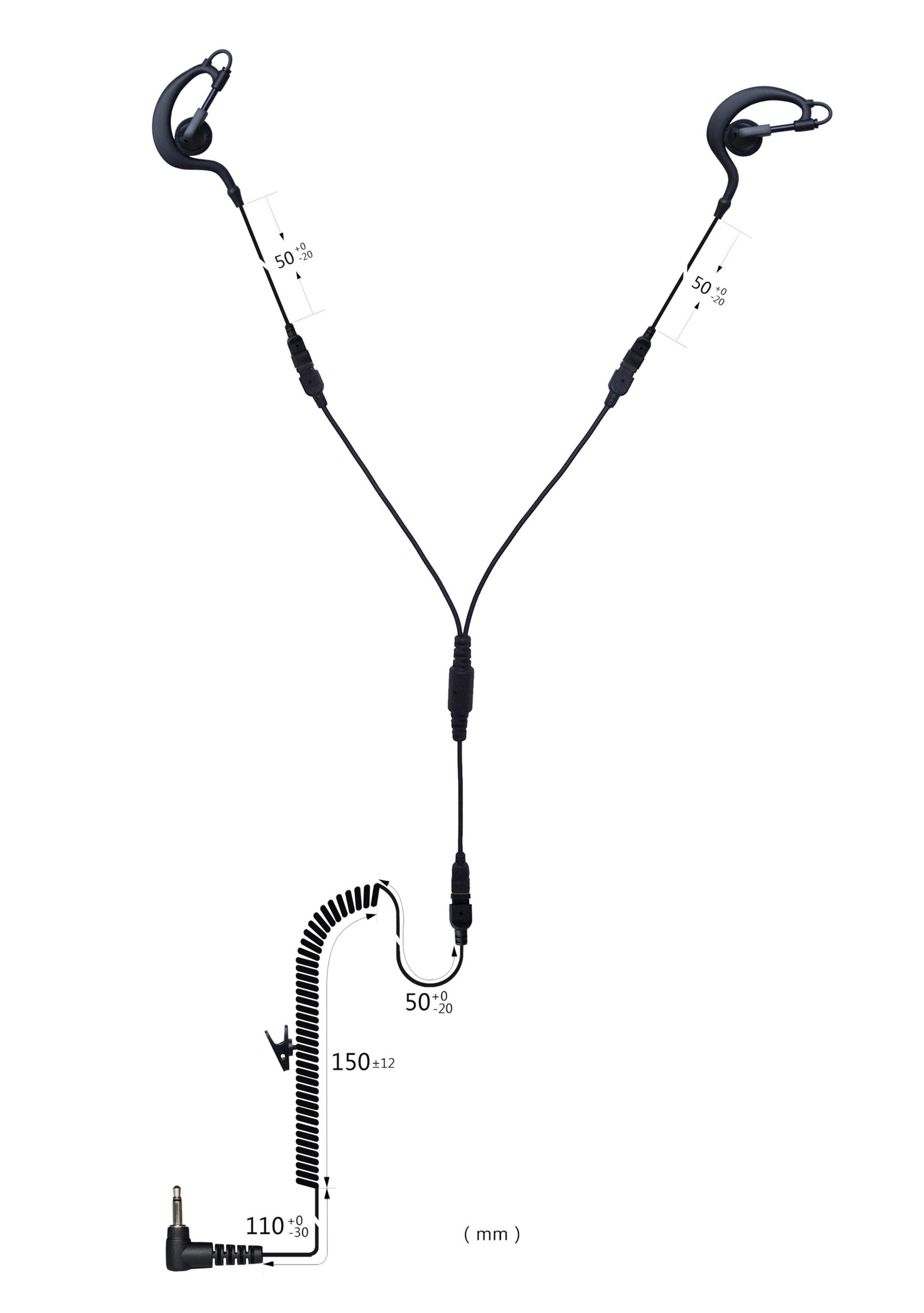

Listen Only Y Splitter Earhook Earpiece

Designed for users who prefer to hear two-way radio communications in both ears.  The earpieces sits comfortably on the outside of the ear and come with soft foam covers.

Short Cable

  • Intended Use:
      • Alongside a Remote Speaker Microphone
  • Available in 2.5 mm and 3.5mm Connector

Long Cable

  • Intended Use:
      • Direct Connection to Office, Base Station, or Vehicle Two-Way Radio
  • Available in 2.5 mm, 3.5mm and 3.5mm Threaded Connector

Key Features:

  • 1 Year Warranty
  • Non-Intrusive Design
  • Soft, Skin-Friendly Material
  • Reversible Fit
  • Flexible Kevlar Reinforced PU Cable
  • Superior Audio Quality

Electrical Specifications for Speaker

Speaker Type Mylar Speaker
Speaker Dimensions Ф15.0 mm
Speaker Impedance 32 Ohms±20%
Rated input Power 0.1 W
Max. Input Power 0.2 W for 1 Minute
Sound Pressure Level 111 dB±4dB/1mW at 1KHz
Distortion 5% Max. Rated Input at 1KHz

Electrical Specifications for Cable

Open/short circuit standard At least 20KΩ
Acceptable capacitance Less than 0.05µF
Open/short circuit test time 2.0 seconds
Conductance resistance Less than 3.00Ω
Input voltage for insulation resistance test 300V
Insulation resistance standard At least 20MΩ
Insulation resistance test time 0.01 second

Product Reliability Assurance Test

Storage / Work Environment -40℃~70℃; 24H.
Drop 152.4cm; 10 times.
Bending (Cable) ±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable) Cable pulling force: 15Kgf;

Plug, Jack pulling force :5Kgf;
PTT Life The test is not applicable
Electronic static discharge Connect discharge: 8KV; disconnect discharge: 15KV
