(CRS-LOH) Listen Only Harness

(CRS-LOH) Listen Only Harness

$25.00AUD
$25.00AUD
Sale Sold out

List Price EX. GST

CRS-LOHS-2.5

Connector Chart

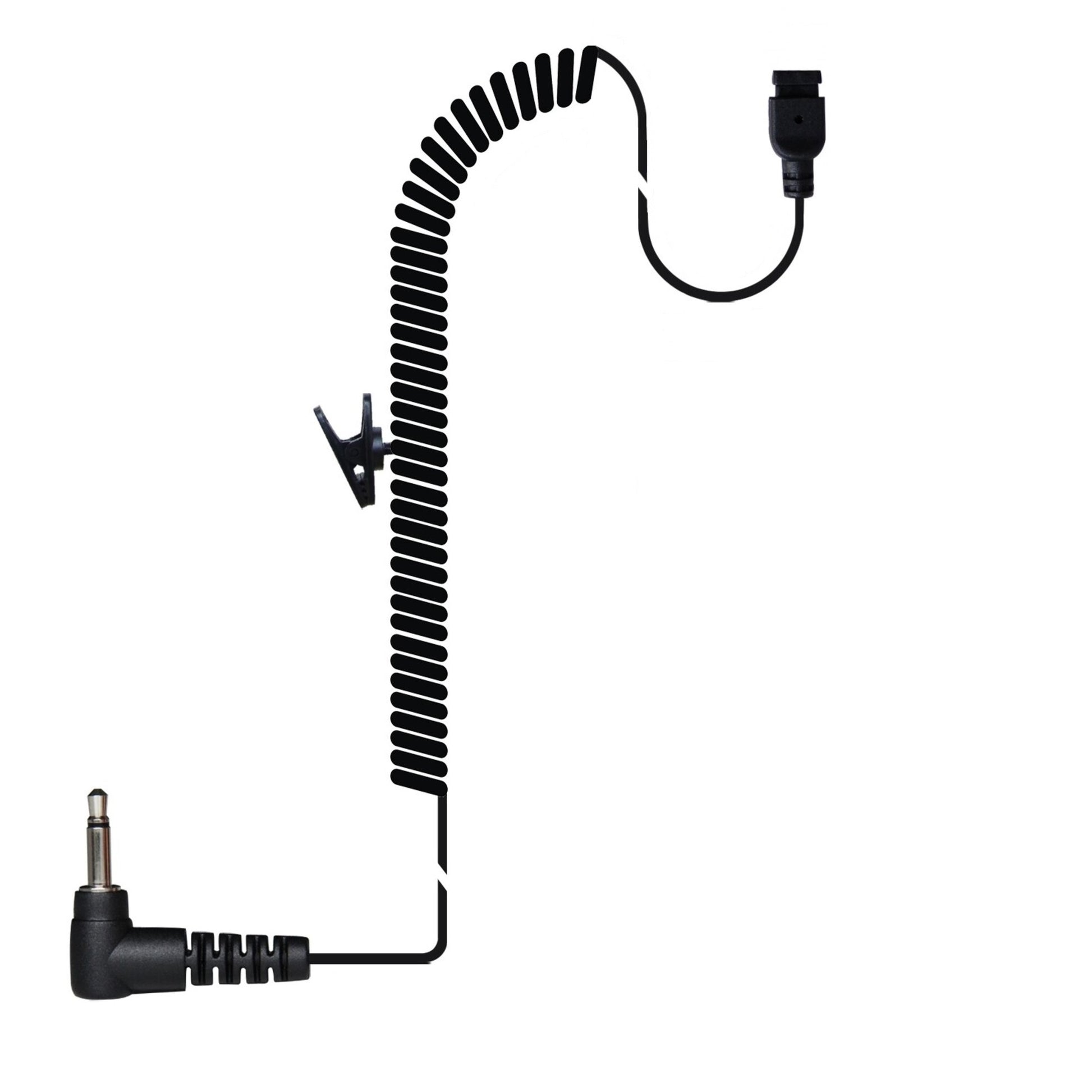

Listen Only Harness

Offers users the flexibility to easily swap between a wide range of earpieces, a cost-effective solution for staff sharing radios, allowing each user to select or be supplied with their preferred earpiece

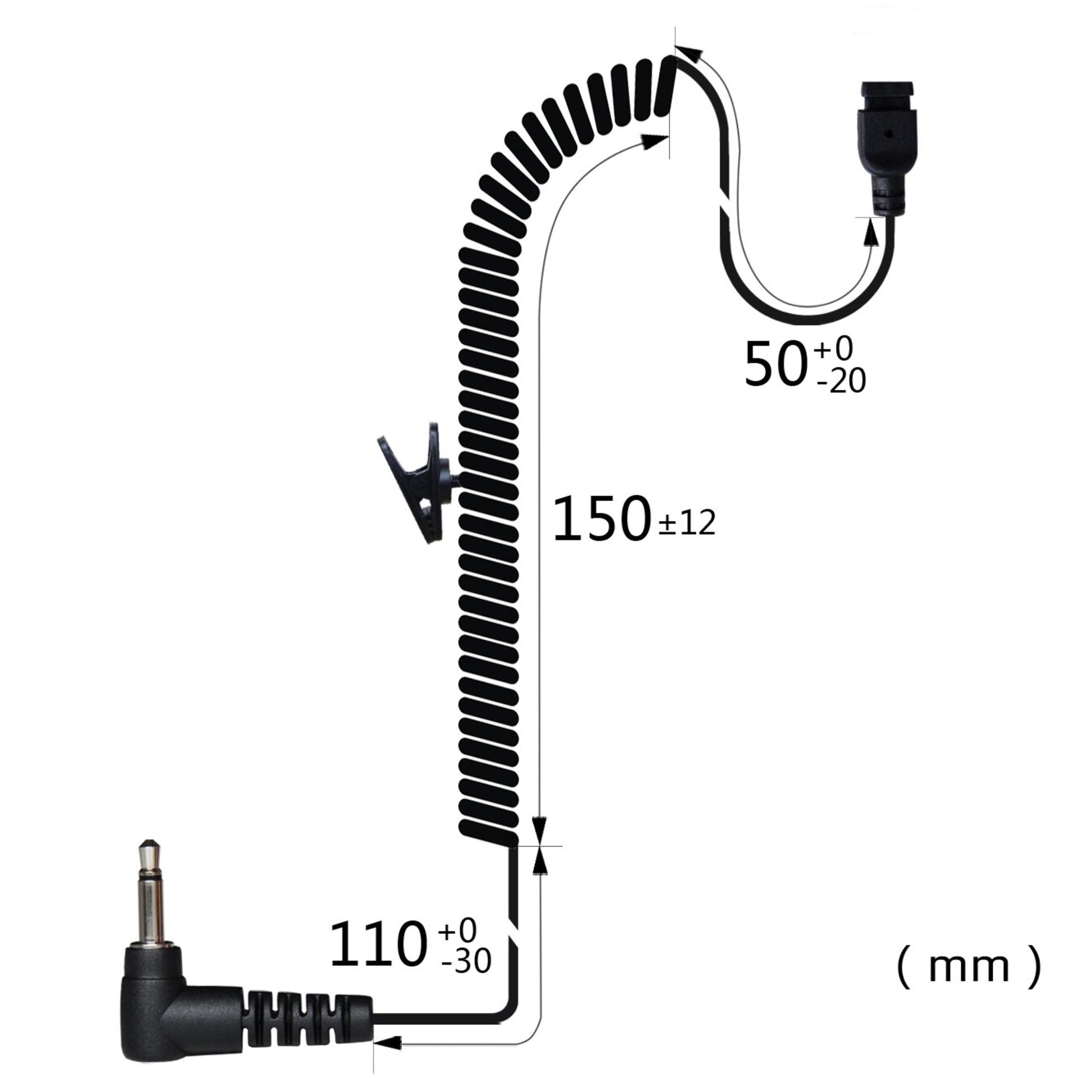

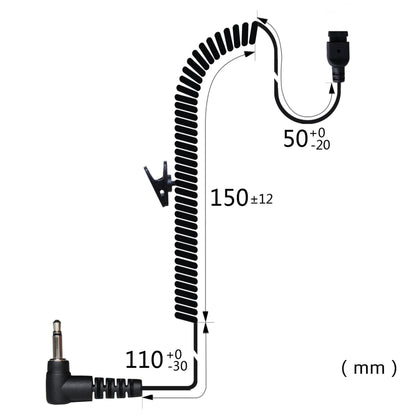

Short Cable

  • Intended Use:
      • Alongside a Remote Speaker Microphone
  • Available in 2.5 mm and 3.5mm Connector

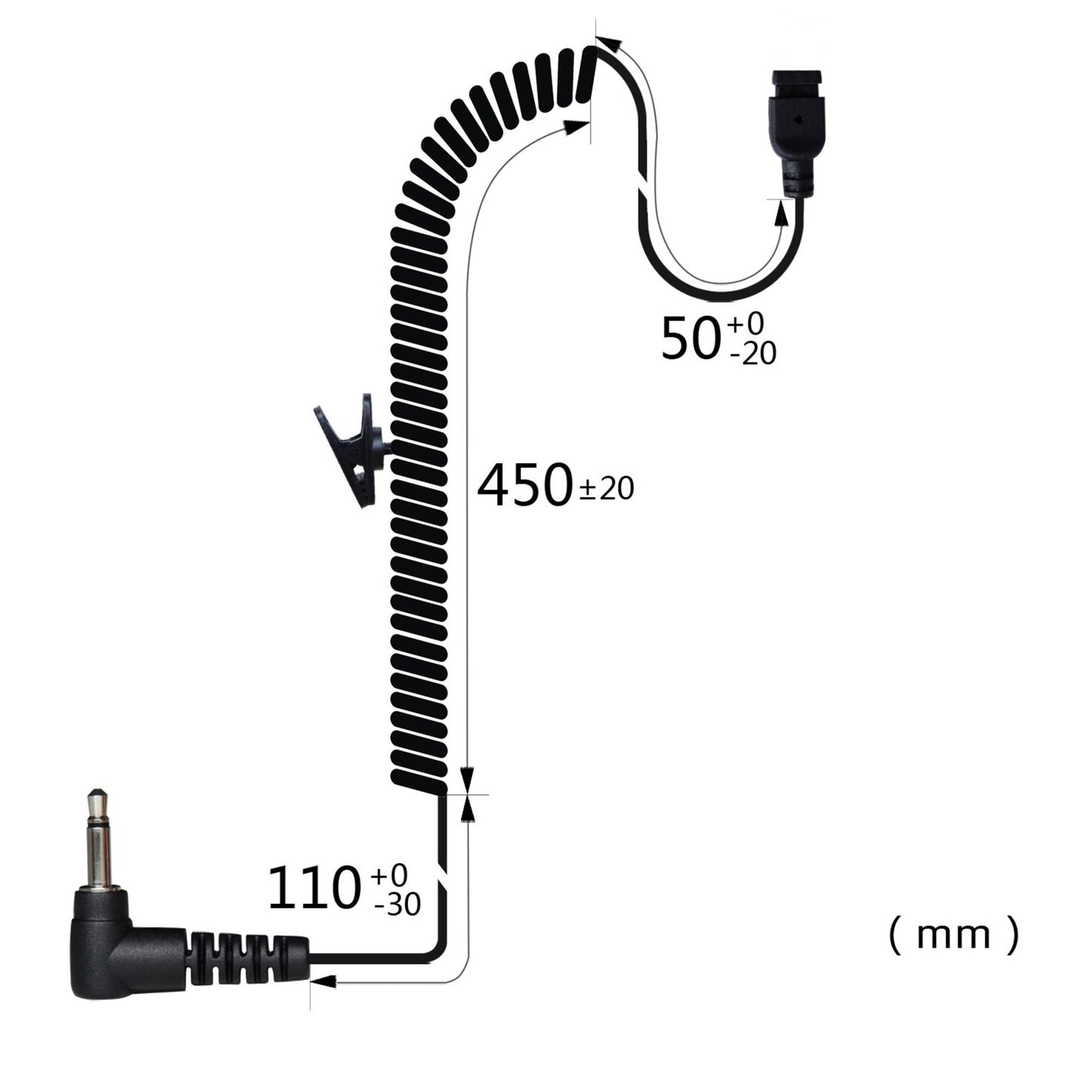

Long Cable

  • Intended Use:
      • Direct Connection to Office, Base Station, or Vehicle Two-Way Radio
  • Available in 2.5 mm, 3.5mm and 3.5mm Threaded Connector

Key Features:

Electrical Specifications for Cable

Open/short circuit standard At least 20KΩ
Acceptable capacitance Less than 0.05µF
Open/short circuit test time 2.0 seconds
Conductance resistance Less than 3.00Ω
Input voltage for insulation resistance test 300V
Insulation resistance standard At least 20MΩ
Insulation resistance test time 0.01 second

Product Reliability Assurance Test

Storage / Work Environment -40℃~70℃; 24H.
Drop 152.4cm; 10 times.
Bending (Cable) ±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable) Cable pulling force: 15Kgf;

Plug, Jack pulling force :5Kgf;
PTT Life The test is not applicable
Electronic static discharge Connect discharge: 8KV; disconnect discharge: 15KV
