(CRS-HDSMCOM) Heavy Duty Compact Remote Speaker Microphone w/ 3.5mm Audio Jack
(CRS-HDSMCOM) Heavy Duty Compact Remote Speaker Microphone w/ 3.5mm Audio Jack
List Price EX. GST
SKU:CRS-HDSMCOM-GME
Couldn't load pickup availability

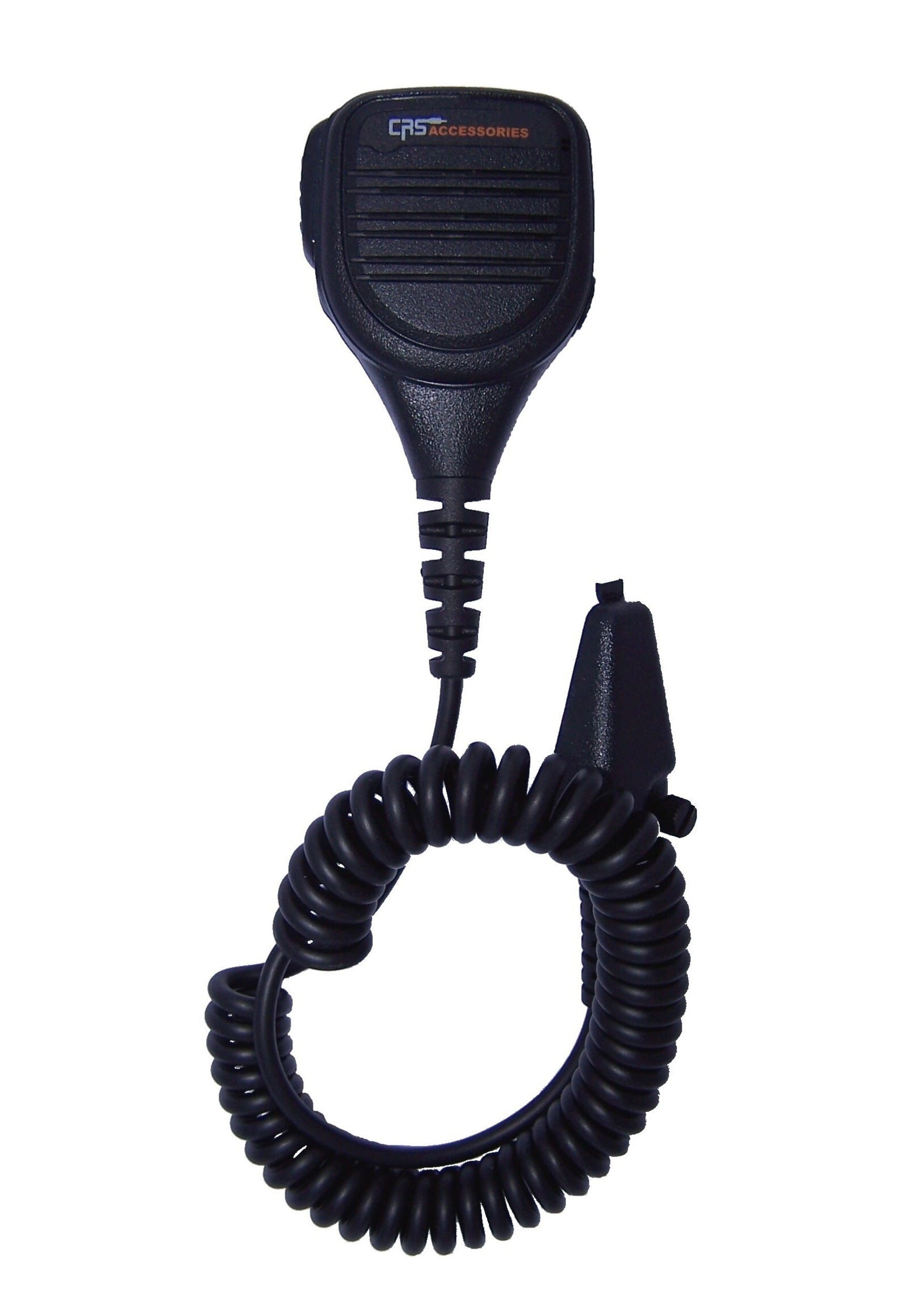

Heavy-Duty Compact Remote Speaker Microphone with 3.5mm Audio Jack
Designed for durability and performance, this heavy-duty compact speaker microphone features a built-in 3.5mm audio jack for earpiece connectivity and a 360° swivel metal clip for versatile mounting. Built with a robust, weather-resistant housing and an extra-large PTT button, it delivers loud, clear audio even in demanding environments.
Key Features:
Compact, heavy-duty design
Large, easy-to-use Push-To-Talk (PTT) button
Rugged, weather-resistant housing
Super-flexible PU cable reinforced with Kevlar for enhanced durability
Loud and clear audio performance
Integrated 3.5mm audio jack for optional earpiece connection
360° swivel metal clip for secure and adjustable attachment
Backed by a 1-year warranty
Electrical Specifications for Speaker
| Speaker Type | Mylar Speaker |
| Speaker Dimensions | Ф45.0 mm |
| Speaker Impedance | 8 Ohms±20% |
| Rated input Power | 0.5 W |
| Max. Input Power | 1.0W for 1 Minute |
| Sound Pressure Level | 103 dB±4dB/2000mV at 1KHz |
| Distortion | 5% Max. Rated Input at 1KHz |
Electrical Specifications for Microphone
| Microphone Type | ECM Microphone |
| Microphone Dimensions | Φ6.0×5.0mm |
| Sensitivity | -42 dB±3dB/U=2.0 V; R=2.2KΩ at 1KHz |
| Working Voltage | 1.0~10V |
| Current | ≤0.5mA（U=2.0V，Rf=2.2KΩ）at 1.0KHz |
Product Reliability Assurance Test
| Storage / Work Environment | -40℃~70℃; 24H. |
| Drop | 152.4cm; 10 times. |
| Bending (Cable) | ±90°; 30cycles/min; 500g load; 5000 cycles. |
| Pulling (Cable) | Cable pulling force: 20Kgf;
Adapter pulling force :10Kgf; Speaker, microphone pulling force: 10Kgf |
| PTT Life | 100000 cycles. |
| Electronic static discharge | Connect discharge: 8KV; disconnect discharge: 15KV |
