(CRS-GPSV) GPS Vehicle Antenna/Receiver

(CRS-GPSV) GPS Vehicle Antenna/Receiver

$80.00AUD
$80.00AUD
Sale Sold out

List Price EX. GST

CRS-GPSV-NX800

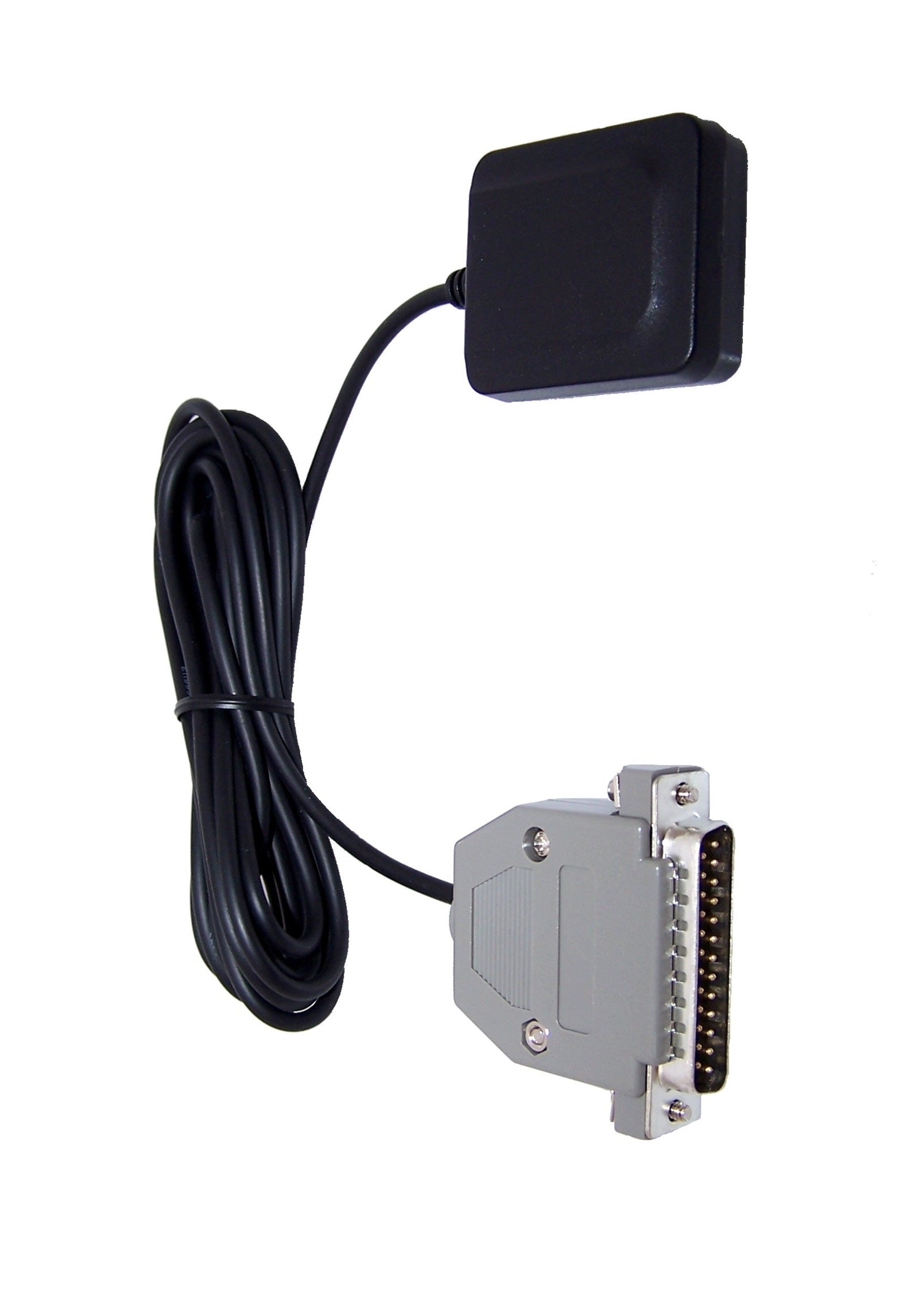

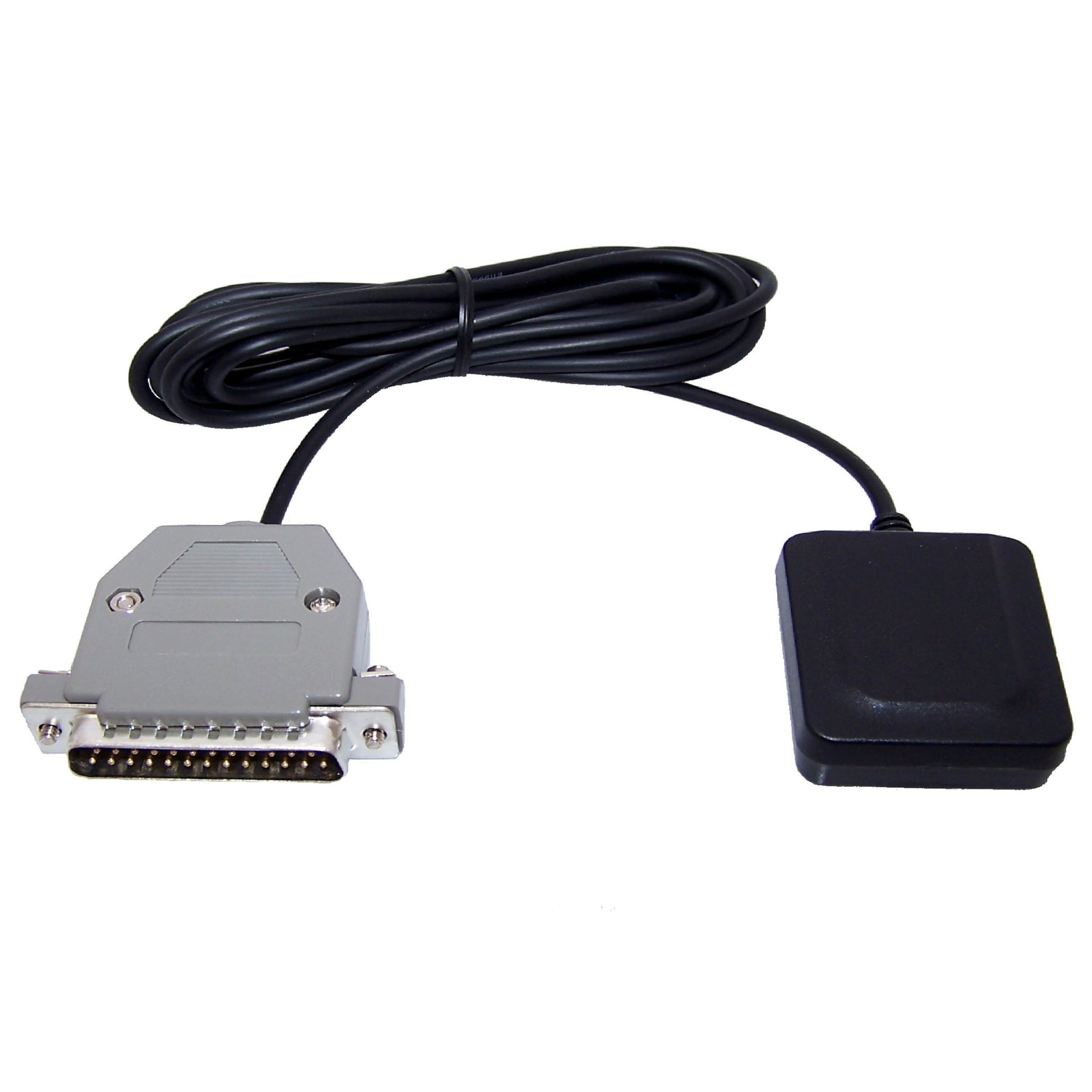

GPS Vehicle Antenna/Receiver

This waterproof GPS antenna/receiver is designed for versatile vehicle mounting. Equipped with a magnet, it can be securely placed on the roof or fixed to the dashboard using double-sided tape, depending on your needs.

Key Features:

  • 1 Year Warranty
  • Designed to Plug into the Back of the Kenwood NX-800 Radio
  • Compatible with Other Radio Brands for Various Applications
  • Inline Connector for Easy Installation
  • 13.8VDC – 5VDC Regulator Built into DB25 Connector
  • Includes Status Input Wire for Features like Ignition Sensing
  • Blue LED Indicator Flashes Every 5 seconds when GPS Satellite Lock is Acquired
  • Retains Memory for Fast Satellite Reacquisition Upon Power-up
  • Sensitive Receiver Acquires Satellite Quickly
Dimensions: 36mm x 42mm x 5mm
SiRF III
Channels: 20 channels L1 frequency C/A code
Sensitivity Acquisition: 142 dBm
Sensitivity Tracking: 159 dBm
Position Accuracy: < 2.5m (Autonomous)
< 2.0m (WAAS)
(50% 24hr static, 130dBm)
Cold Start: 42 sec
TTFF  Warm Start: 35 sec
Hot Start: 1 sec
Power Consumption: 45mA, continuous tracking mode (USB) (tracking average)
Temperature: -40 – 85°C
Max Altitude: <18,000m
Max Velocity: <1,852 km/hr
