(CRS-EHL) Earhook Large Earpiece
(CRS-EHL) Earhook Large Earpiece
List Price EX. GST
SKU:CRS-EHL
Couldn't load pickup availability

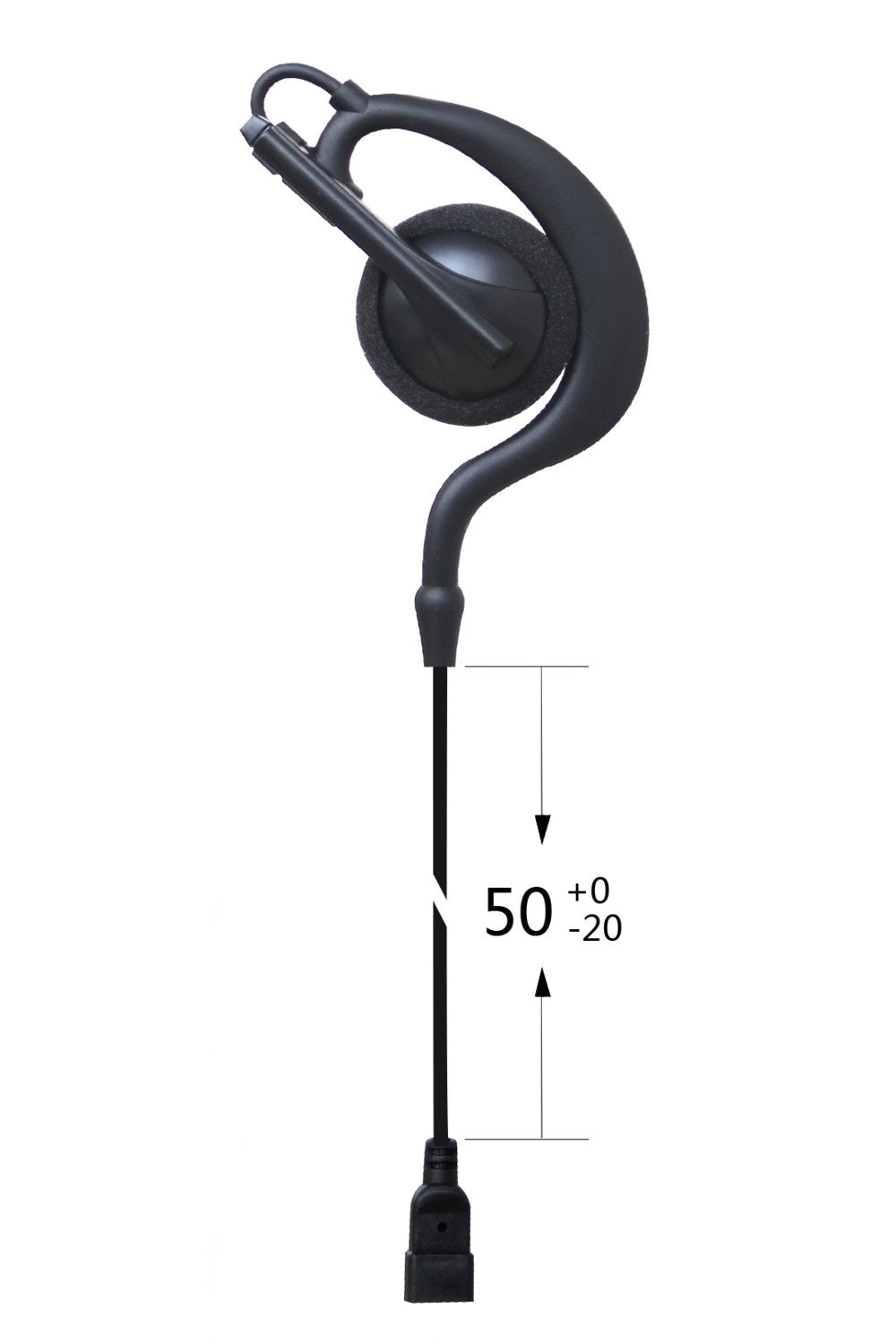

Earhook Large Earpiece
We offer a variety of earpiece options, all available separately to fit our unique harness kits.
Your choice — just let us know what you need.
The CRS-EHL combines the best features of the DHook and Earhook earpieces. It’s non-intrusive, exceptionally comfortable, and designed based on customer feedback—you asked, we delivered.
Ideal for all industries, it’s especially popular with security, police, manufacturing, hotel staff, and event coordinators.
Features
Super flexible PU cable reinforced with Kevlar for maximum durability.
Hygienic design.
1-year warranty.
SUITS
1 Wire and 2 Wire Harness Kits, Throat Mics, etc
Electrical Specifications for Speaker
| Speaker Type | Mylar Speaker |
| Speaker Dimensions | Ф23.0 mm |
| Speaker Impedance | 32 Ohms±20% |
| Rated input Power | 0.05 W |
| Max. Input Power | 0.1 W for 1 Minute |
| Sound Pressure Level | 115 dB±4dB/1mW at 1KHz |
| Distortion | 5% Max. Rated Input at 1KHz |
Product Reliability Assurance Test
| Storage / Work Environment | -40℃~70℃; 24H. |
| Drop | 152.4cm; 10 times. |
| Bending (Cable) | ±90°; 30cycles/min; 200g load; 10000 cycles. |
| Pulling (Cable) | Cable pulling force: 10Kgf;
2-PIN plug pulling force :5Kgf; Speaker pulling force: 5Kgf |
| PTT Life | The test is not applicable |
| Electronic static discharge | Connect discharge: 8KV; disconnect discharge: 15KV |
