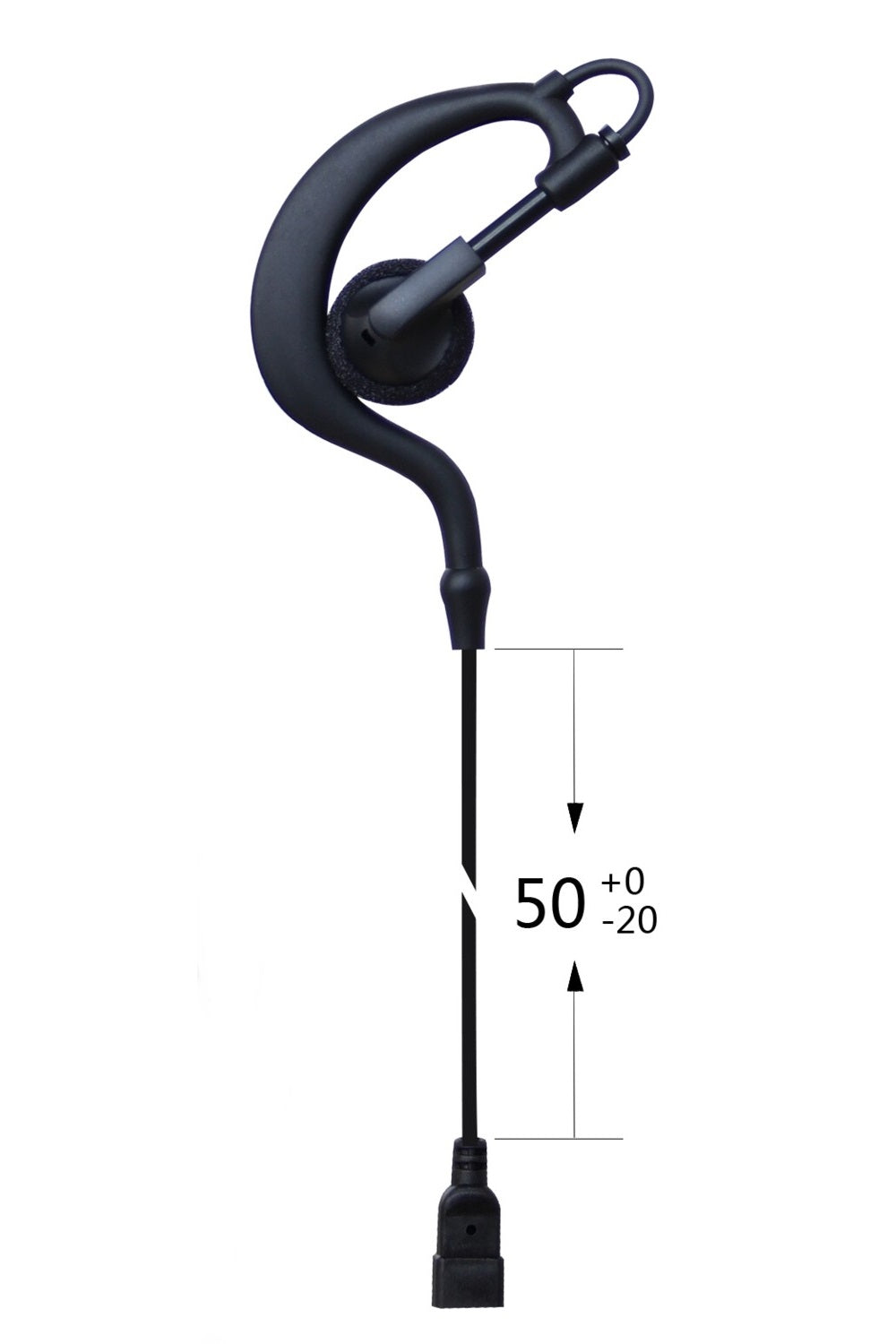

(CRS-EH) Earhook Earpiece
(CRS-EH) Earhook Earpiece
List Price EX. GST
SKU:CRS-EH
Couldn't load pickup availability
Earhook Earpiece
We offer a wide range of earpiece options available separately to fit our unique harness kits.
Your choice—just tell us what you need.
The CRS-EH Earhook earpiece is modeled on the popular mobile phone style but specially adapted for radio users.
Suitable for all industries, it’s a favorite among security personnel, police, manufacturing staff, hotel workers, and event coordinators.
Features
Super flexible PU cable reinforced with Kevlar for maximum durability.
Backed by a 1-year warranty.
SUITS
1 Wire and 2 Wire Harness Kits, Throat Mics, etc.
Electrical Specifications for Speaker
| Speaker Type | Mylar Speaker |
| Speaker Dimensions | Ф15.0 mm |
| Speaker Impedance | 32 Ohms±20% |
| Rated input Power | 0.1 W |
| Max. Input Power | 0.2 W for 1 Minute |
| Sound Pressure Level | 111 dB±4dB/1mW at 1KHz |
| Distortion | 5% Max. Rated Input at 1KHz |
Product Reliability Assurance Test
| Storage / Work Environment | -40℃~70℃; 24H. |
| Drop | 152.4cm; 10 times. |
| Bending (Cable) | ±90°; 30cycles/min; 200g load; 10000 cycles. |
| Pulling (Cable) | Cable pulling force: 10Kgf;
2-PIN plug pulling force :5Kgf; Speaker pulling force: 5Kgf |
| PTT Life | The test is not applicable |
| Electronic static discharge | Connect discharge: 8KV; disconnect discharge: 15KV |
