(CRS-EB) Earbud Earpiece
(CRS-EB) Earbud Earpiece
List Price EX. GST
SKU:CRS-EB
Couldn't load pickup availability
Earbud Earpiece
We offer a range of earpiece options that can be purchased separately to fit our unique harness kits.
Your choice—just let us know what you need.

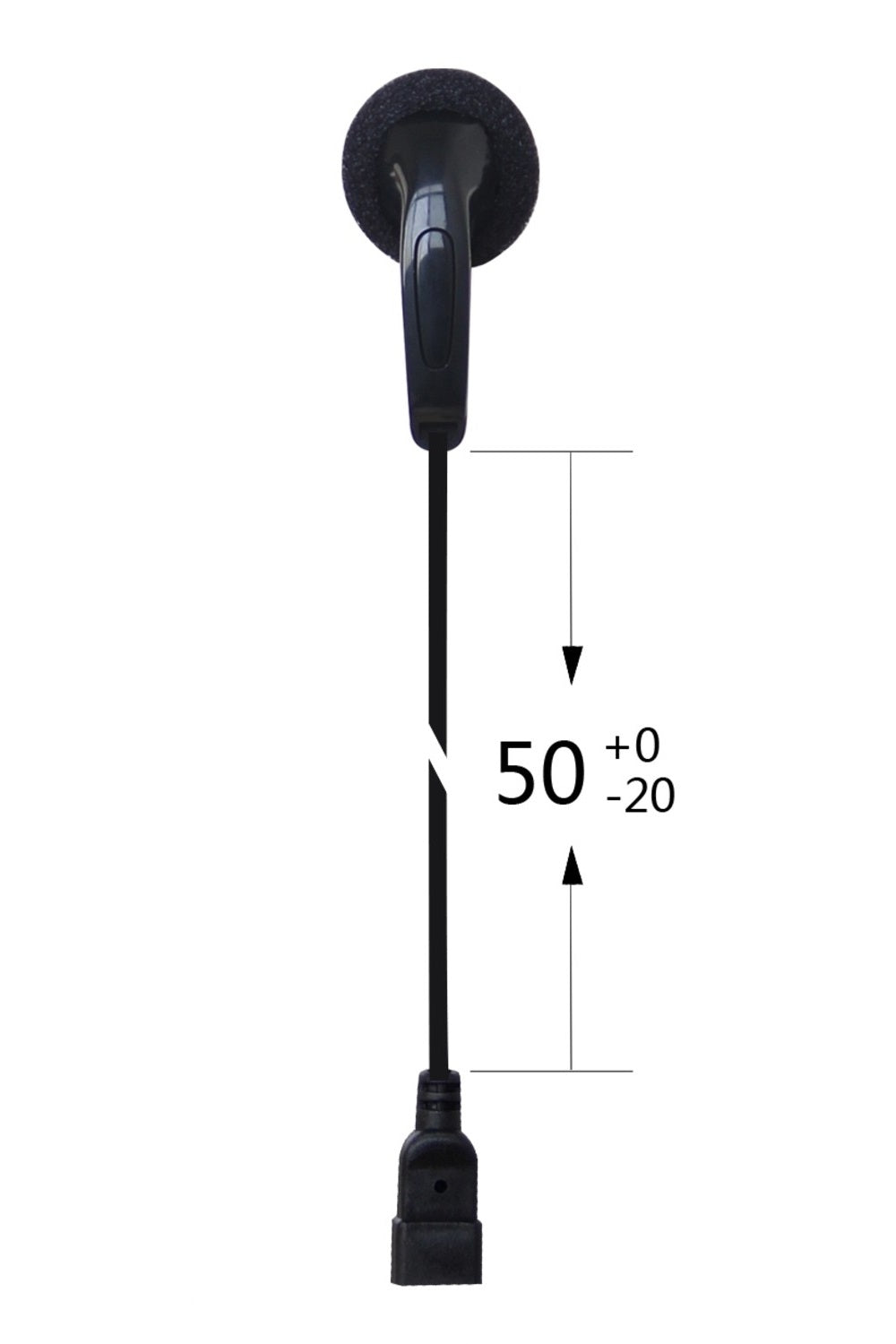

The CRS-EB Earbud earpiece is inspired by the popular mobile phone style but specially adapted for radio users.
Ideal for all industries, and especially favored by security, police, manufacturing, hotel staff, and event coordinators.
Features
Super flexible PU cable reinforced with Kevlar for enhanced durability.
Comes with a 1-year warranty.
SUITS
1 Wire and 2 Wire Harness Kits, Throat Mics, etc.
Electrical Specifications for Speaker
| Speaker Type | Mylar Speaker |
| Speaker Dimensions | Ф15.0 mm |
| Speaker Impedance | 32 Ohms±20% |
| Rated Input Power | 0.1 W |
| Max. Input Power | 0.2 W for 1 Minute |
| Sound Pressure Level | 110 dB±4dB/1mW at 1KHz |
| Distortion | 5% Max. Rated Input at 1KHz |
Product Reliability Assurance Test
| Storage / Work Environment | -40℃~70℃; 24H. |
| Drop | 152.4cm; 10 times. |
| Bending (Cable) | ±90°; 30cycles/min; 200g load; 10000 cycles. |
| Pulling (Cable) | Cable pulling force: 10Kgf;
2-PIN plug pulling force :5Kgf; Speaker pulling force: 5Kgf |
| PTT Life | The test is not applicable |
| Electronic static discharge | Connect discharge: 8KV; disconnect discharge: 15KV |
