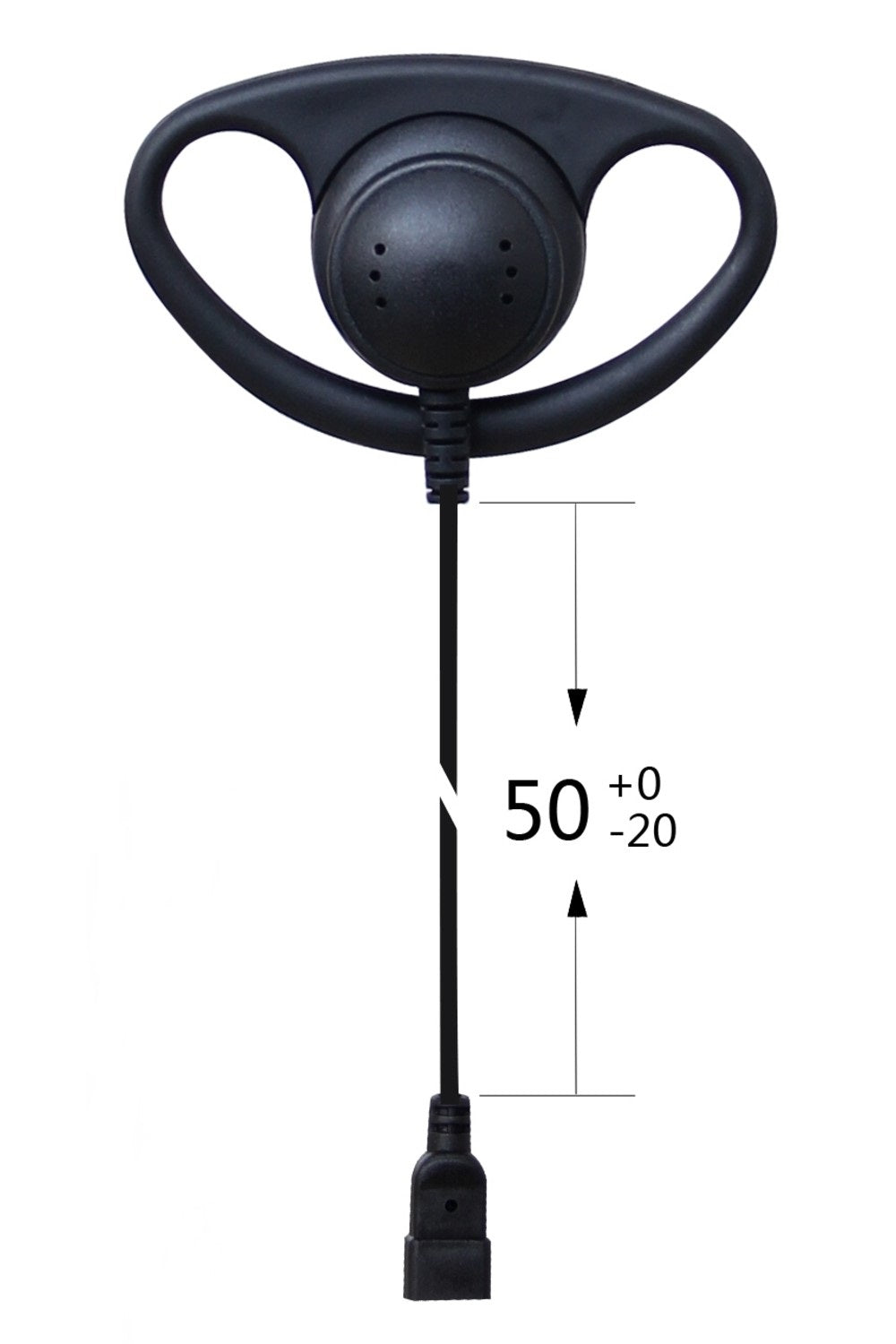

(CRS-DH) D-Hook Earpiece

(CRS-DH) D-Hook Earpiece

Login to view pricing - WHOLESALE ONLY

List Price EX. GST

CRS-DH

D-Hook Earpiece

We offer a wide range of earpiece options available separately to perfectly complement our unique harness kits.

Simply choose the style that suits your needs.

The CRS-DH D-Hook earpiece is a non-intrusive, highly comfortable option designed for long-term wear.

Features

Super flexible PU cable reinforced with Kevlar for exceptional durability.

Hygienic design ensuring comfort and safety.

Backed by a 1-year warranty.

SUITS

1 Wire, 2 Wire Harness Kits, etc



Electrical Specifications for Speaker

Speaker Type Mylar Speaker
Speaker Dimensions Ф23 mm
Speaker Impedance 32 Ohms±20%
Rated input Power 0.1W
Max. Input Power 0.2W for 1 Minute
Sound Pressure Level 110 dB±4dB/1mW at 1KHz
Distortion 5% Max. Rated Input at 1KHz



Product Reliability Assurance Test

Storage / Work Environment -40℃~70℃; 24H.
Drop 152.4cm; 10 times.
Bending (Cable) ±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable) Cable pulling force: 10Kgf;

2-PIN plug pulling force :5Kgf;

Speaker pulling force: 5Kgf
PTT Life The test is not applicable
Electronic static discharge Connect discharge: 8KV; disconnect discharge: 15KV
