Charger Pocket Chart

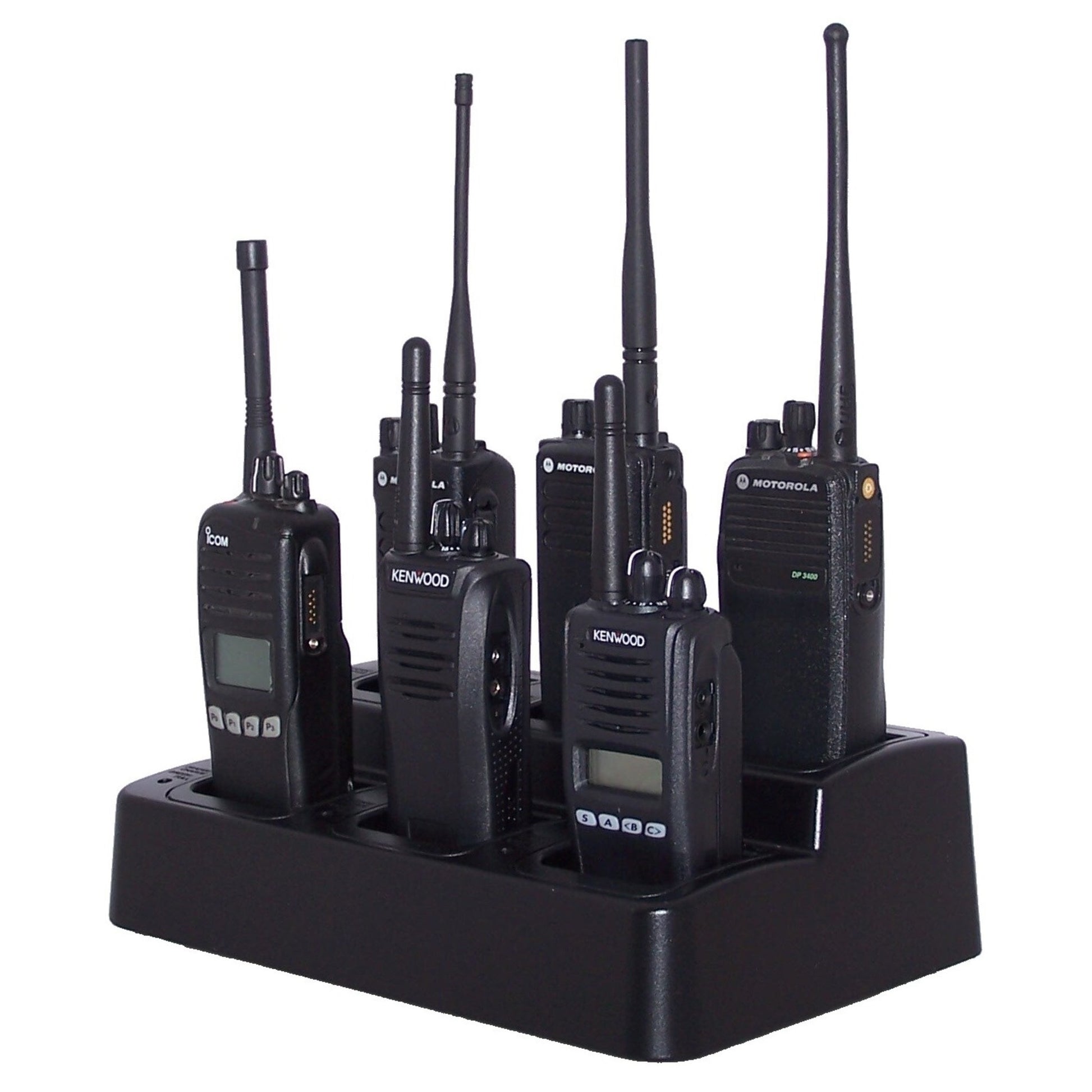

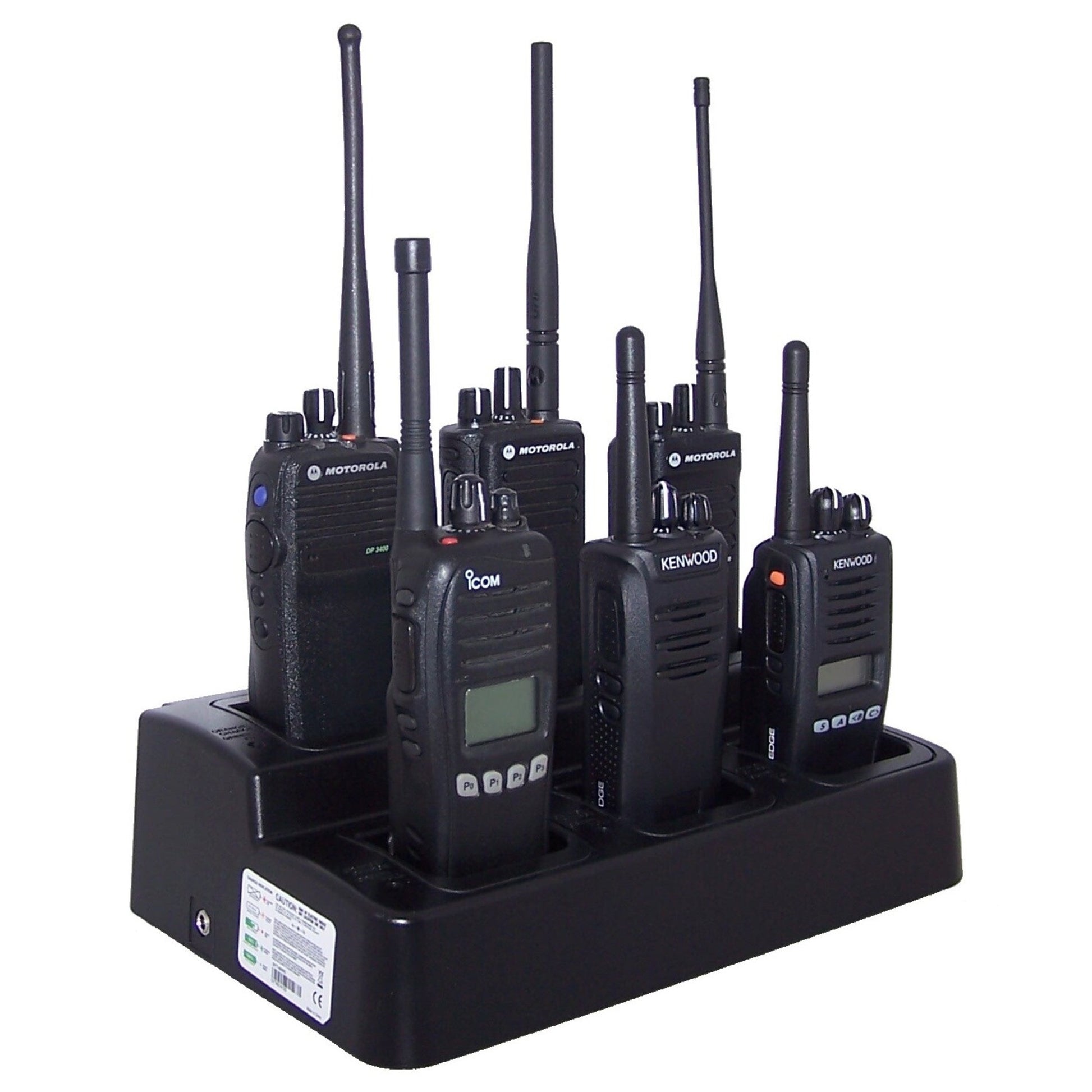

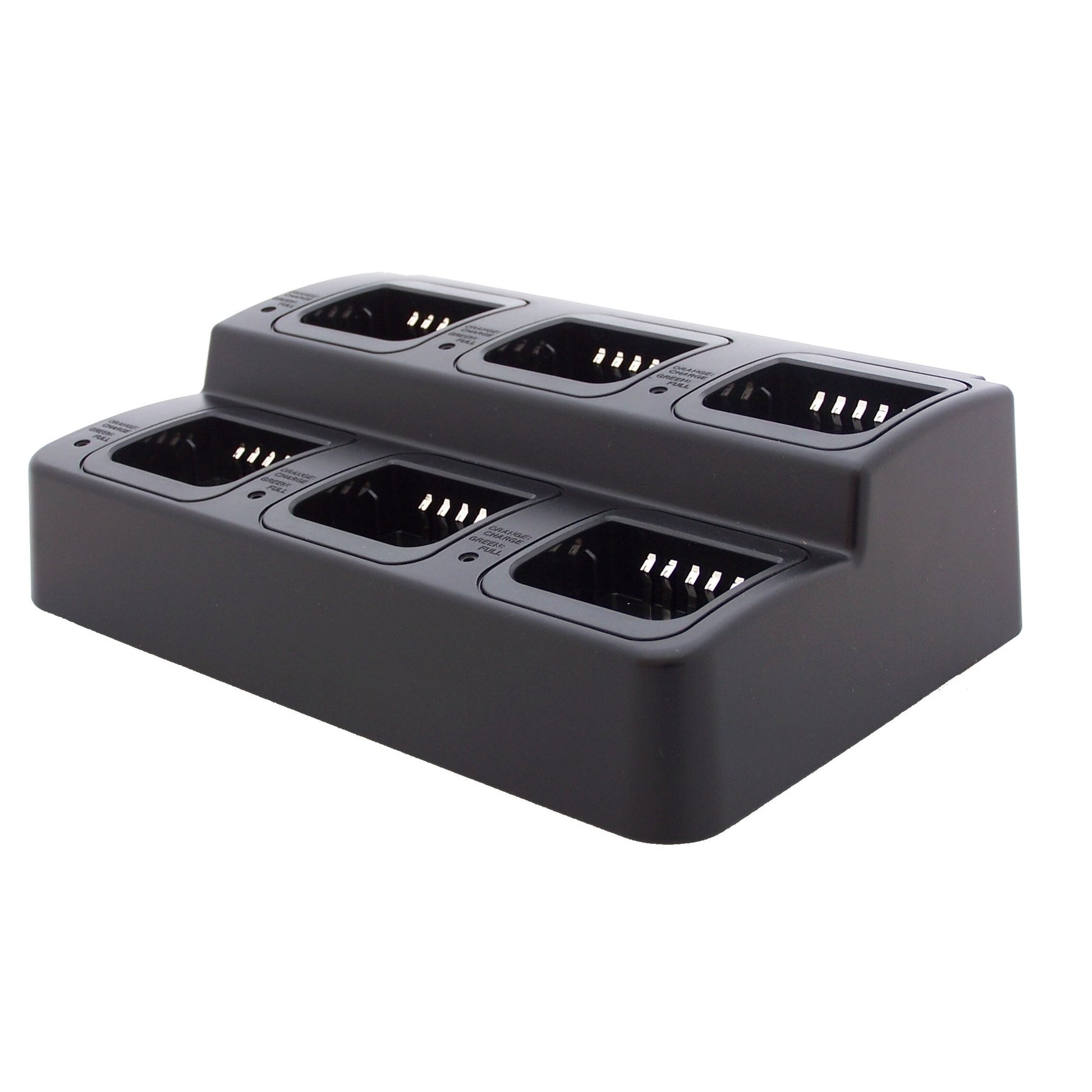

Compact Universal 6-Bay Charger

The Compact 6-Bay Universal Charger is designed with interchangeable charging pockets to support a wide range of popular two-way radio models. Despite its high capacity, the charger is lightweight, space-saving, and wall-mountable—perfect for use in workshops, offices, or vehicles. It can be powered by 240VAC or a 12V vehicle power supply (additional cable required), making it ideal for flexible charging in the field or on the go.

A key differentiator of CRS Accessories’ multi-bay chargers is their intelligent battery monitoring capability. Our chargers continuously sense battery capacity and automatically reactivate the charging cycle if capacity drops by more than 20%.
This functionality is especially beneficial for customers who need to keep their two-way radios powered on while docked in the charger. Unlike many competing multi-bay chargers that continue to apply a trickle charge or cease charge completely, CRS chargers manage the charge cycle appropriately.
Prolonged trickle charging can damage batteries and significantly reduce their overall lifespan. CRS Accessories’ approach helps protect battery health and extend operational life.

Key Features

Interchangeable charging pockets available for most major radio brands

Dual power support – Operates on 240VAC or 12VDC (vehicle power)

Tri-chemistry support – Charges Ni-Cad, Ni-MH, and Li-ion batteries

Compact and lightweight design

Dimensions: 29cm x 19cm x 9cm

Weight: 1.5kg

Cost-effective solution for multi-radio charging

1-year warranty

Compatible Charging Pockets for UMBC6

GME

CRS-CPS-20 – Suits: TX685, TX6150, TX6155, TX6160

ICOM

CRS-CPS-1 – Suits: IC-41S, IC-41W, IC-F14/F24, IC-F33/43, IC-F3063/4063 (BP232 Series Batteries)

CRS-CPS-19 – Suits: IC-41Pro, IC-F1000/2000, IC-F1000D/2000D (BP280 Battery)

KENWOOD

CRS-CPS-4 – Suits: TK-2180/3180, Nexedge NX200/300, NX-5200/5300, VP5230/5330/5430

CRS-CPS-5 – Suits: TK-2160/3160, TK-2170/3170, TK-2140/3140, TK-2360/3360, NX-220/320, NX-3200/3300

CRS-CPS-6 – Suits: TK-2207/3207, TK-3202L, TK-2307/3307, TK-3212, TK-2407/3407, TK-3310, TK-3710X, TK-D240/D340, NX-240/340, NX-1200/1300

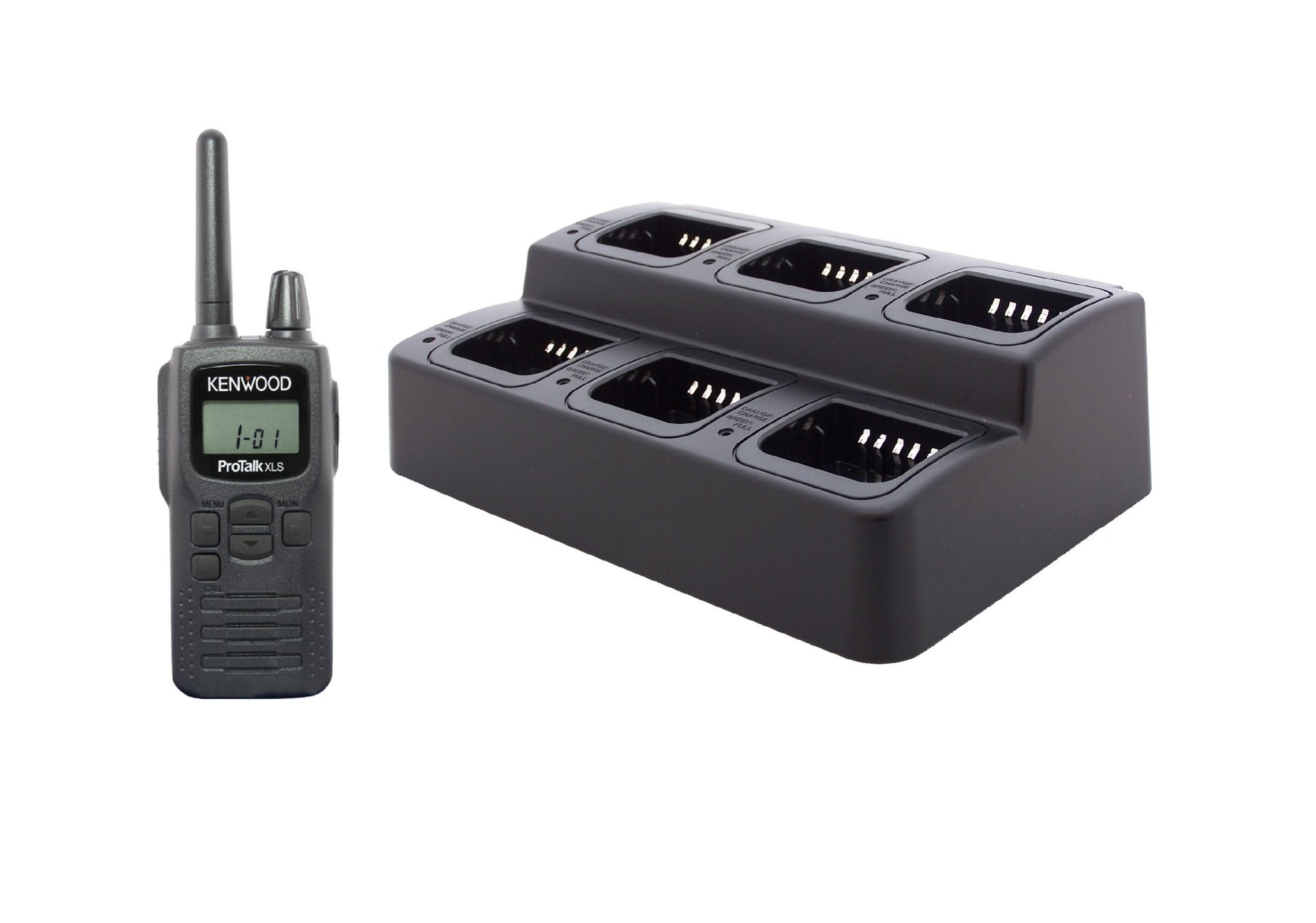

CRS-CPS-18 – Suits: Kenwood PKT-23 (also used in CRS-USBC-PKT23 Dual Bay & CRS-USBC6-PKT23 12-Bay Chargers)

MOTOROLA

CRS-CPS-7 – Suits: GP Series, HT Series, MTX900/960, PTX Series, GP Plus Series, GP338XLS, MotoTRBO DP3441

CRS-CPS-8 – Suits: DP2000/2600/3000/4000 Series, Moto R5, R7

CRS-CPS-10 – Suits: CP476 (PMNN4081 Battery)

CRS-CPS-14 – Suits: DEP450, Moto R2

VERTEX

CRS-CPS-13 – Suits: All Vertex radios using Vertex Uni Battery
