(CRS-2WEB) 2 Wire Earbud Earpiece

(CRS-2WEB) 2 Wire Earbud Earpiece

$65.00AUD
$65.00AUD
Sale Sold out

List Price EX. GST

CRS-2WEB-GME

Connector Chart

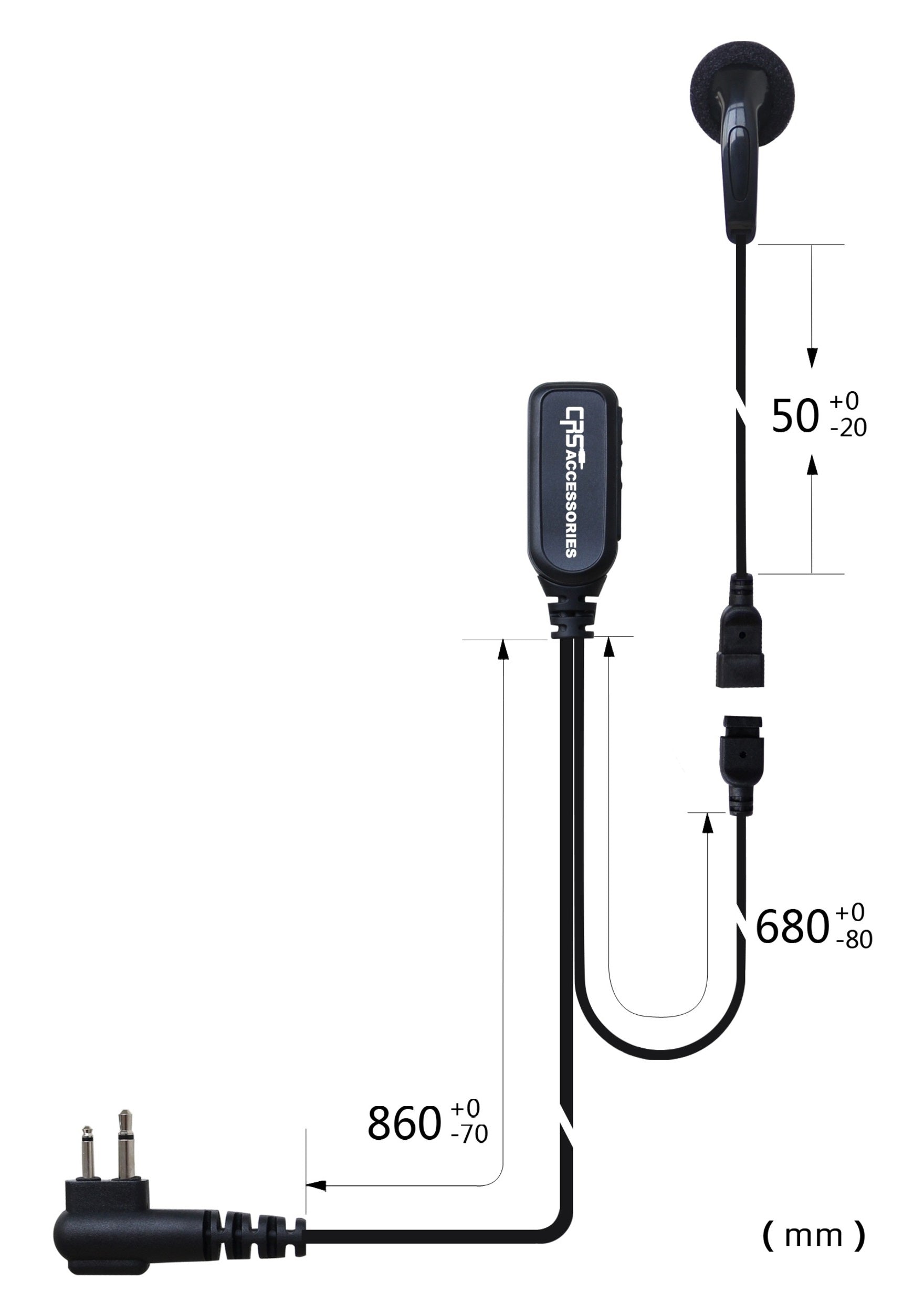

2 Wire Earbud Earpiece with Inline PTT/Microphone

Designed to sit comfortably on the outside of the ear, the earpiece comes with a soft foam cover. The harness splits into two at the PTT/microphone, allowing the cable to be concealed under clothing with the earpiece running discreetly from the back of a collar or t-shirt.

It's ideal for a wide range of industries and is especially popular among hotel employees, and event coordinators.

Key Features:

  • 1 Year Warranty
  • Non-Intrusive Design
  • Includes Soft Foam Cover
  • Ambidextrous Wear
  • Flexible Kevlar Reinforced PU Cable
  • Inline Push to Talk (PTT)
  • Superior Audio Quality
  • Replaceable Clothing Clip

Electrical Specifications for Speaker

Speaker Type Mylar Speaker
Speaker Dimensions Ф15.0 mm
Speaker Impedance 32 Ohms±20%
Rated Input Power 0.1 W
Max. Input Power 0.2 W for 1 Minute
Sound Pressure Level 110 dB±4dB/1mW at 1KHz
Distortion 5% Max. Rated Input at 1KHz

Electrical Specifications for Microphone

Microphone Type ECM Microphone
Microphone Dimensions Φ4.0×2.0mm
Sensitivity -41 dB±3dB/U=2.0 V; R=2.2KΩ at 1KHz
Working Voltage 1.0~10V
Current ≤0.5mA（U=2.0V，Rf=2.2KΩ）at 1.0KHz

Product Reliability Assurance Test

Storage / Work Environment -40℃~70℃; 24H.
Drop 152.4cm; 10 times.
Bending (Cable) ±90°; 30cycles/min; 200g load; 10000 cycles.
Pulling (Cable) Cable pulling force: 10Kgf;

Plug pulling force :10Kgf;

Speaker, PTT, microphone pulling force: 5Kgf
PTT Life 100000 cycles.
Electronic static discharge Connect discharge: 8KV; disconnect discharge: 15KV
