(CRS-GH) G-Hook Earpiece
(CRS-GH) G-Hook Earpiece
List Price EX. GST
Quantity
SKU:CRS-GH
Couldn't load pickup availability
G-Hook Earpiece
We offer a range of earpiece options that can be purchased separately to fit our unique harness kits.
Your choice — simply let us know what you need.

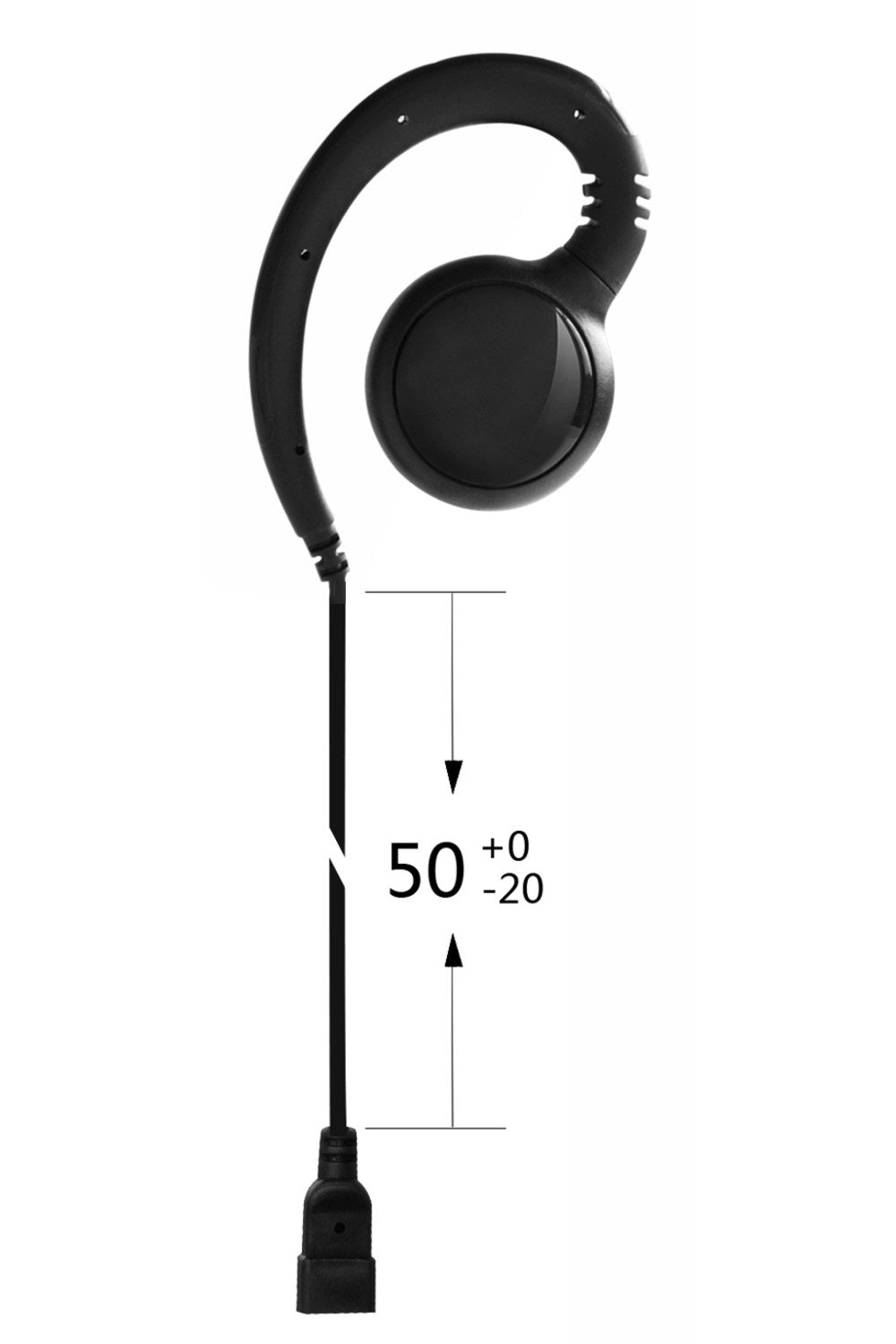

The CRS-GH G-Hook earpiece is designed to be non-intrusive and exceptionally comfortable for long-term use.
Features
Super flexible PU cable reinforced with Kevlar for maximum durability.
Hygienic and ultra-comfortable design.
1-year warranty.
SUITS
1 Wire, 2 Wire Harness Kits, etc
Electrical Specifications for Speaker
| Speaker Type | Mylar Speaker |
| Speaker Dimensions | Ф23 mm |
| Speaker Impedance | 32 Ohms±20% |
| Rated input Power | 0.1W |
| Max. Input Power | 0.2W for 1 Minute |
| Sound Pressure Level | 110 dB±4dB/1mW at 1KHz |
| Distortion | 5% Max. Rated Input at 1KHz |
Product Reliability Assurance Test
| Storage / Work Environment | -40℃~70℃; 24H. |
| Drop | 152.4cm; 10 times. |
| Bending (Cable) | ±90°; 30cycles/min; 200g load; 10000 cycles. |
| Pulling (Cable) | Cable pulling force: 10Kgf;
2-PIN plug pulling force :5Kgf; Speaker pulling force: 5Kgf |
| PTT Life | The test is not applicable |
| Electronic static discharge | Connect discharge: 8KV; disconnect discharge: 15KV |
