(CRS-DC2412-10) 24 - 13.8VDC Step Down Converter
(CRS-DC2412-10) 24 - 13.8VDC Step Down Converter
List Price EX. GST
SKU:CRS-DC2412-10
Couldn't load pickup availability

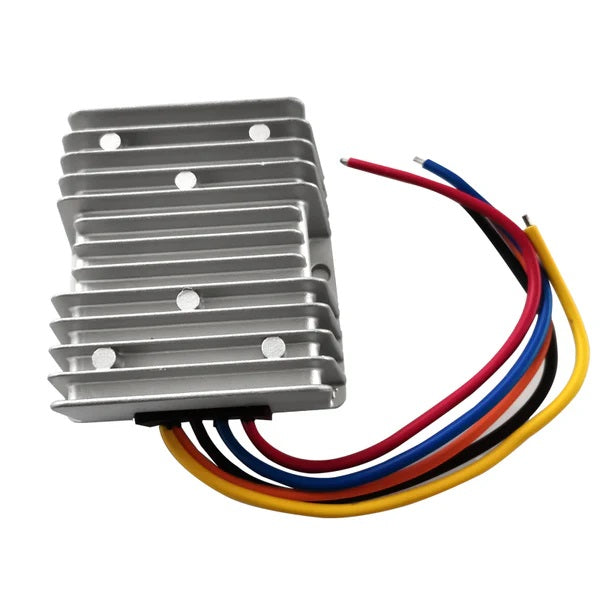

24-13.8VDC Step Down Converter with Separate Switched Accessory Output
Power your 12V equipment reliably from a 24V system with this high-efficiency 24V to 13.8V DC step-down converter. Designed for automotive, marine, RV, and industrial applications, it delivers a stable 13.8VDC output—ideal for two-way radios, stereos, lighting, and other 12V accessories.
The 10A constant output coupled with the integrated accessory input/output feature allows seamless control of connected devices, enabling ignition-triggered activation or remote on/off functionality. Built with advanced voltage regulation and protection against over-voltage, over-current, overheating, and short circuits, this converter ensures safe, consistent performance in demanding environments.
Compact, durable, and easy to install, it’s the perfect solution for stepping down power while maintaining full control of your auxiliary equipment.
| Specification | Value |
|---|---|
| Efficiency | 95% |
| Input Voltage | 18–35V DC |
| Output Voltage | 13.8V |
| Output Current | 10A |
| Ripple | 200mVp |
| Line Regulation | ±0.2% |
| Load Regulation | ±0.2% |
| Voltage Accuracy | ±1.5% |
| Enclosure Rating | IP68 |
| Dimensions | 74 × 74 × 31 mm |
| Net Weight | 0.28 kg |
| Operating Temperature | −40 to 85 °C |
